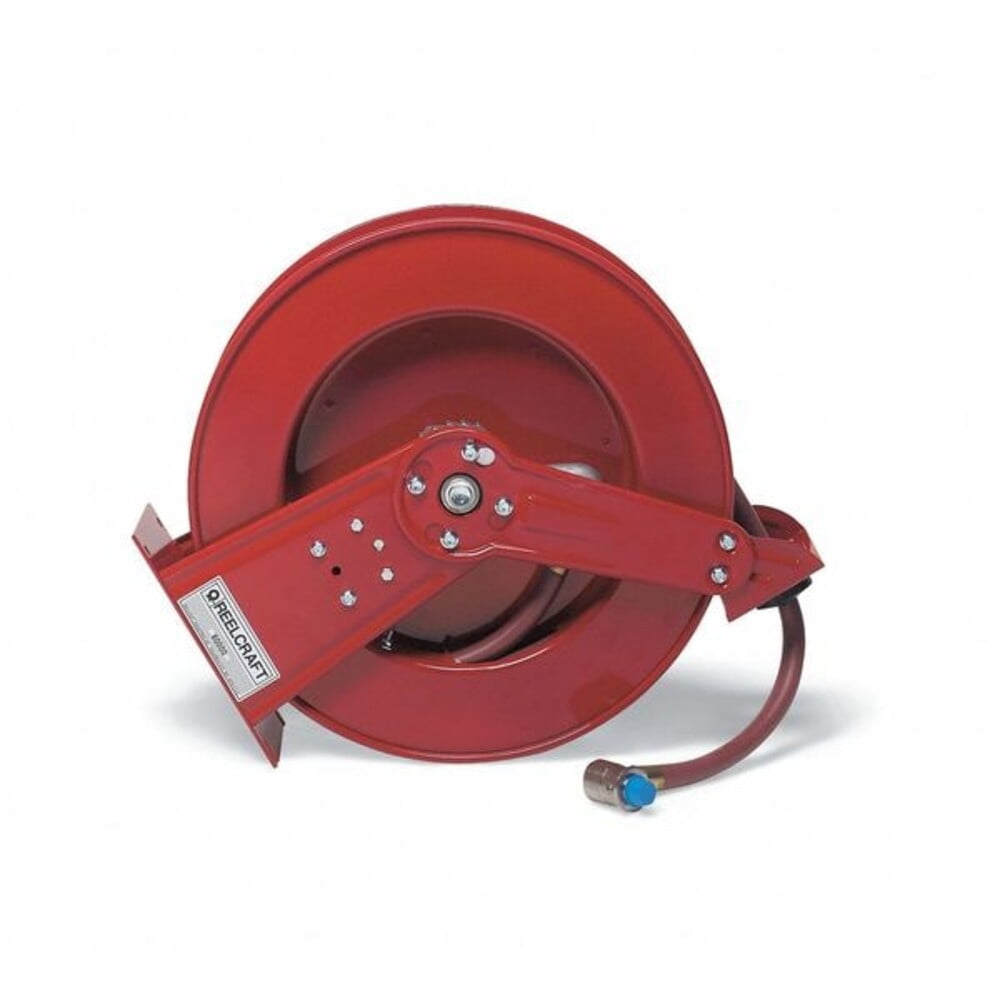

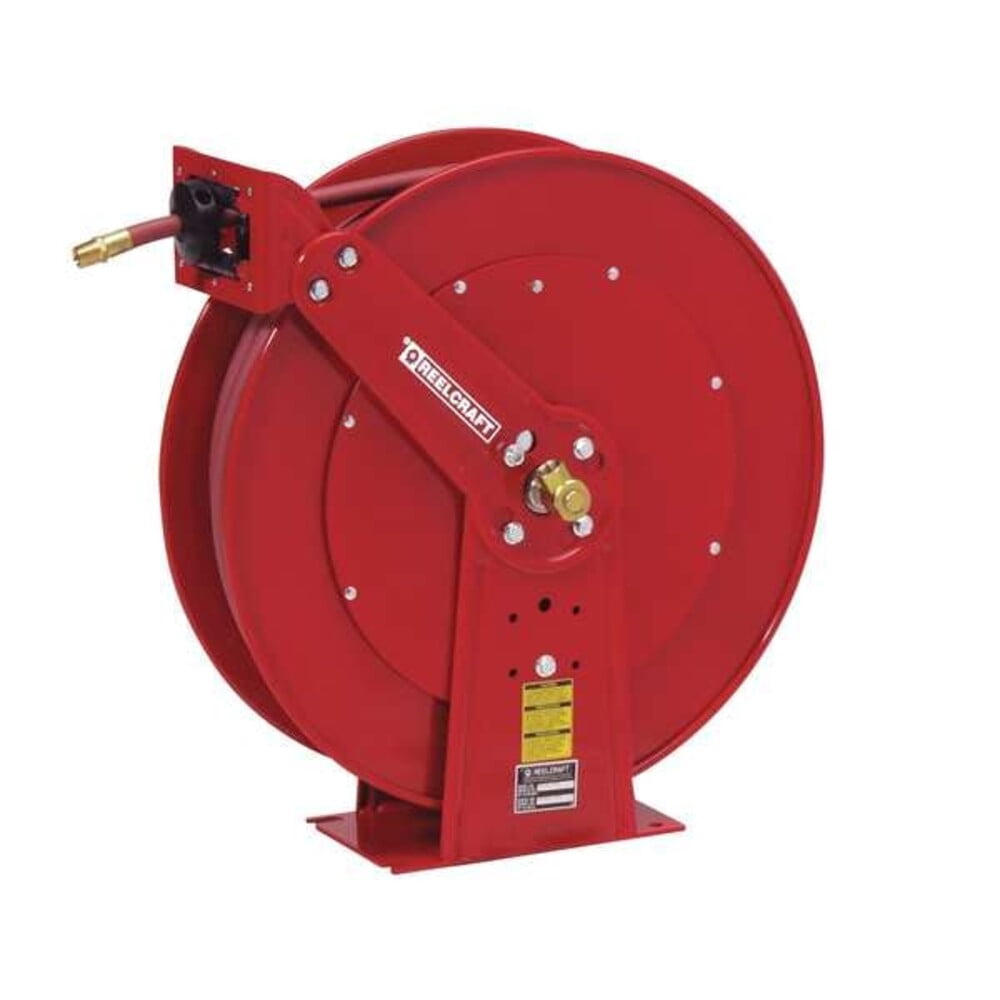

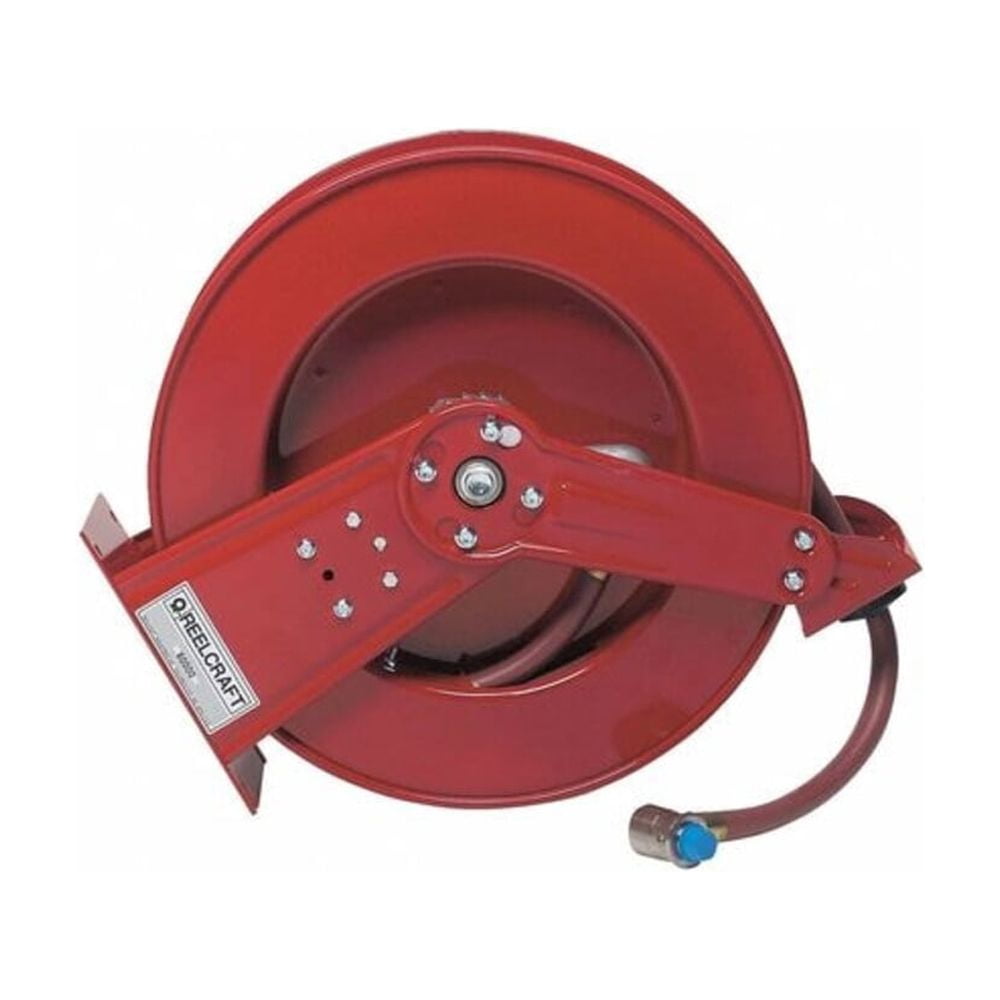

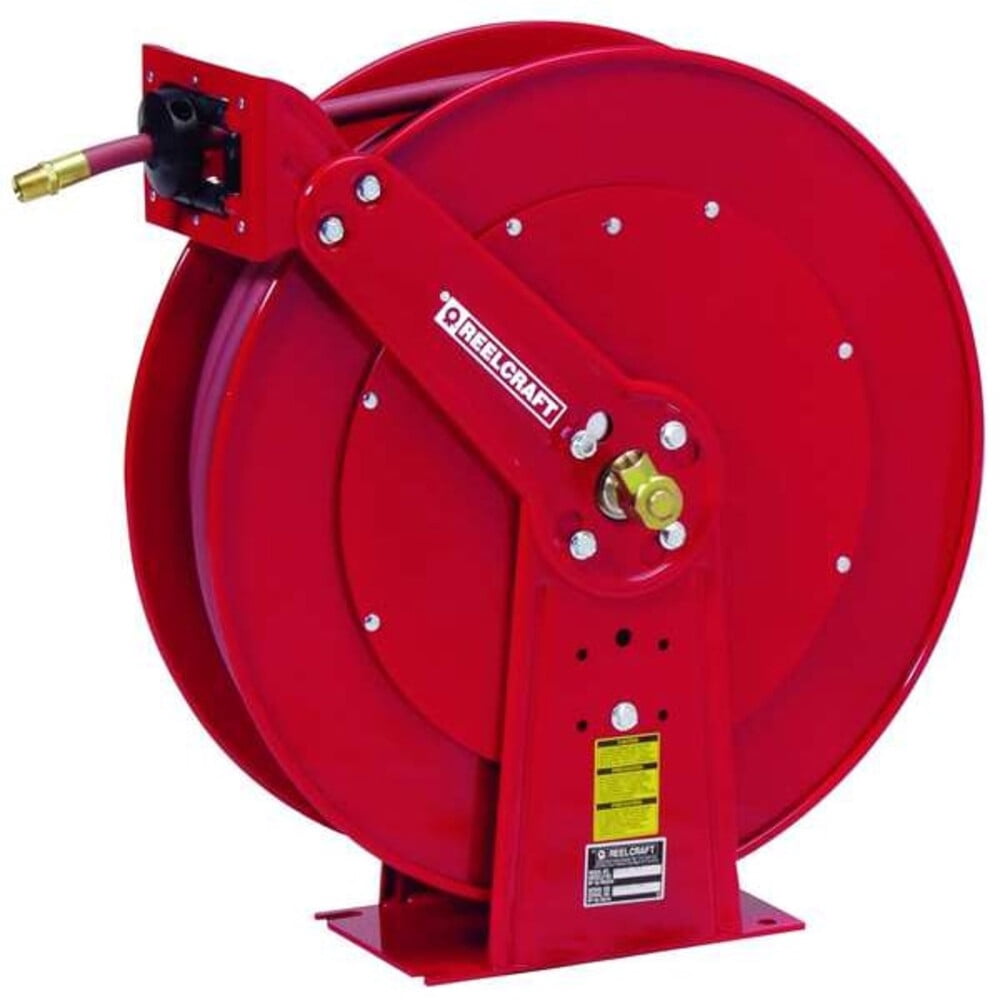

REELCRAFT 81100 OLP 3/8" x 100 ft. Spring Return Hose Reel with Hose 300 psi

REELCRAFT 81100 OLP is a spring return hose reel for air and water service that includes a 3/8 in. I.D. x 100 ft PVC hose. It uses a dual pedestal, open-frame steel reel with a stationary base and can be mounted on a bench or truck, ceiling, floor, or wall. The reel has a locking, spring-loaded latch, a 1/2 in. FNPT inlet that can be connected from either side, and a 3/8 in. MNPT hose outlet. It is rated for a maximum operating pressure of 300 psi and a maximum operating temperature of 150 degrees F. Key Features: Spring return drive: Retracts the hose back onto the reel using spring-powered rewind. Included hose: Comes with a red 3/8 in. I.D. x 100 ft PVC hose for air and water applications. Mounting options: Designed for bench and truck, ceiling, floor, or wall mounting. Dual pedestal steel construction: Carbon steel reel with steel base, upright, guide arm, and spool. Powder-coated finish: Coated steel components provide a corrosion-resistant finish. Ball bearing design: Two permanently lubricated, sealed ball bearings support smooth reel rotation. Adjustable guide arm: Guide arm can be set in 4 different positions to suit installation layout. Connection sizes: Reel inlet is 1/2 in. FNPT; hose fittings are 3/8 in. male NPT brass. Latch mechanism: Spring-loaded locking latch holds the hose at the selected length. Operating range: Rated for 300 psi, with an operating temperature range of 32 to 150 degrees F. Overall size: Measures 24 in. L x 10 1/2 in. W x 25 3/8 in. H.

• Application:Air and Water
• Base Motion Type:Stationary
• Bearing Construction:Ball
• Bearings:Permanently Lubricated
• Corrosion-Resistant:Yes
• Drive Type - Hose Reels:Spring Return
• Drive Type:Spring Return
• Duty Rating:Heavy Duty
• Enclosed Reel:No
• Enclosed:No
• Fasteners Included:No
• Features:Long Life and Trouble-Free Performance
• Finish - Hose Reels:Powder Coated
• Fitting Size:3/8 in x 3/8 in
• Fitting Type:NPT x NPT
• Hose Outside Dia.:5/8 in
• Housing Material:Steel
• image5:https://www.zoro.com/static/cms/product/large/Z6-KFufo5oy.JPG
• Item:Spring Return Hose Reel
• Latch Type:Spring Loaded
• Latch:Locking
• Length:24 in
• Overall Dimensions:24 in L x 10 1/2 in W x 25 3/8 in H
• Overall Height:25 3/8 in
• Overall Length:24 in
• Overall Width:10 1/2 in
• Pedestal Type:Dual Pedestal
• Reel Color:Red
• Reel Diameter:15 1/2 in
• Reel Finish:Powder Coated
• Reel Inlet:1/2 in (F)NPT
• Reel Material:Carbon Steel
• Reel Width:10 1/2 in
• Twin Hose Compatible:No
• Type:Heavy Duty Industrial, Air/Water
• Weight:82 lb
